Features:
▪ Products using imported PC material, anti-UV, uniform light.
▪ Rhombic Angle design, efficiency use light refraction, illumination is more higher.
▪ Standard G13 cap, use more thicker V0 fireproof material, more reliable. Suitable for a variety of occasions.
▪ Large chip, brand leds, ultra-low current used, to ensure product with lower lighting decay.
▪ High quality EMC driver, 5 years warranty.
▪ The product has applied for appearance patent, utility model patent, invention patent.
▪ Tube light endcap color can be customized.
Product Data

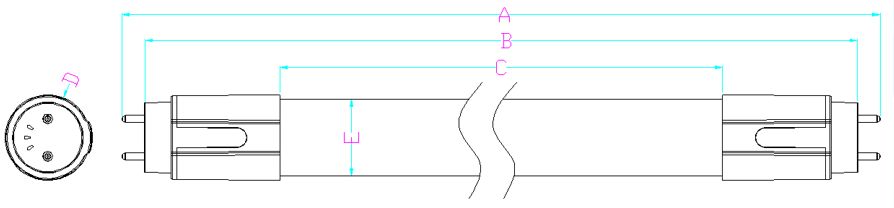

Item No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
WS-T806B08R-GHL | 602 | 588 | 496 | ∅28.5 | ∅26 |
WS-T809B10R-GHL | 908 | 894 | 802 | ∅28.5 | ∅26 |
WS-T812B12R-GHL | 1212 | 1198 | 1106 | ∅28.5 | ∅26 |
WS-T815B20R-GHL | 1512 | 1498 | 1406 | ∅28.5 | ∅26 |
Item No. | Size | Wattage | Lumen |
|---|---|---|---|
WS-T806B08R-GHL | 600mm/2ft | 4W/8W | 140lm/W |
WS-T809B10R-GHL | 900mm/3ft | 5W/10W | |
WS-T812B12R-GHL | 1200mm/4ft | 6W/12W /18W | |
WS-T815B20R-GHL | 1500mm/5ft | 16W/20W |
LED Chips | SMD2835 | CRI | >80or>90 |
lnput voltage (AC/DC) | AC/DC 100-245V | PF | ≥0.9 |
Color temperature (CCT) | 3000/4000/ 5000/6500K | Warranty | 5years |
Operating temperature | -20~+40℃ | Certification | CE/ROHS |
