Product Data

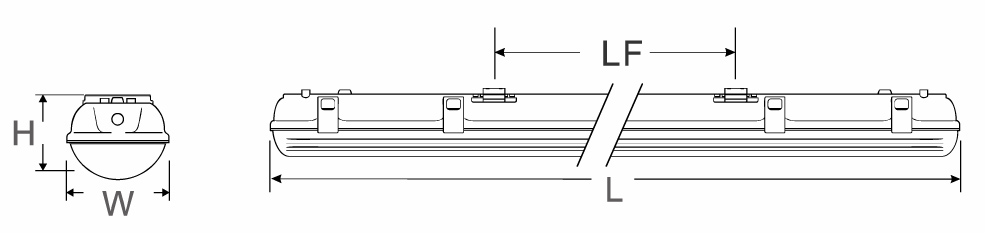

Size | Dimentions(LxWxH) | Q'ty/ctn | Clips | LF (mm) |
|---|---|---|---|---|
600 | 600x83x72 | 15 | 8 | 260-300 |
1200 | 1200x83x72 | 9 | 12 | 800-860 |
1500 | 1500x83x72 | 9 | 14 | 1080-1150 |
Model Number | Length | Power Option | Lumen |
|---|---|---|---|
WS-LI-06P20A | 600mm | 20/18/15/12W | 130lmW |
WS-LI-12P100A | 1200mm | 40/35/28/24W | |
WS-LI-15P150A | 1500mm | 56/50/42/34W |
LED Type | SMD2835 |
|---|---|
CRI | RA>80 |
Input Voltage | AC180-260V |
Power Factor | >0.95 |
Life Span | 50000 hours |
Operating temperature | -20℃～40℃ |
Warranty | 5year |
Certificate | CE/RoHS |
Keywords
LED Openable Triproof Light
▪ PC+PC Material
▪ 600mm, 20/18/15/12W
▪ 1200mm, 40/35/28/24W
▪ 1500mm, 56/50/42/34W
▪ 130lm/W-160lm/W
▪ RA>80, PF>0.95
▪ Brand driver, flicker free
▪ Non-linkable and Linkable
▪ IP65, 5 year warranty
▪ CE/ROHS certificated
