Product Data
Model Number | Size | 3 Power | 3CCT |
|---|---|---|---|
WS-LI06H20W-10PR | 600mm | 20W-16W-12W | 3000K 4000K |
WS-LI12H40W-10PR | 1200mm | 40W-30W-20W | |
WS-LI15H60W-10PR | 1500mm | 60W-50W-40W |
Lumen | 130lm/W-150lm/W-180lm/W | ||
|---|---|---|---|
LED Chip | SMD2835 | ||
Driver | BOKE brand | ||
Working Volts | AC180-277V | ||
CRI | RA>80 | ||
PF | ≥0.9 | ||
Beam Angle | 180 degree | ||
Operating Temperature | -20℃~+40 ℃ | ||
IP rate | IP66, IP69K, IK10 | ||
Warranty | 5years | ||
Certificated | CE/ROHS/TUV/SAA |

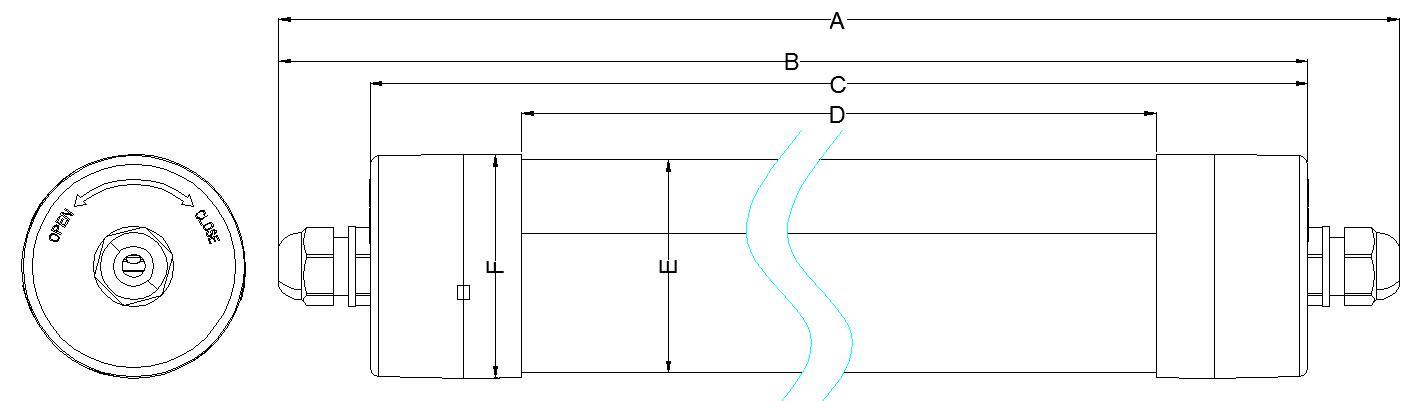

Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
|---|---|---|---|---|---|---|
600mm | 650 | 625 | 600 | 496 | ∅73 | ∅77 |
1200mm | 1250 | 1225 | 1200 | 1096 | ||
1500mm | 1550 | 1525 | 1500 | 1396 |
Tolerance: ±3
Keywords
G10th Round Triproof Light-Mesh Microwave Sensor
▪ Patent private model product.
▪ Whole lamp housing is imported high light transmittance, Anti-UV and not easy to change color, with good luminance uniformity.
▪ Excellent quality driver is used. PF>0.95 and efficiency is more than 0.95. Resist 4KV lighting stroke. No flickering.
▪ Flexible replacement of PCB and driver. It is convenient to prepare inventory and enviorment friendly.
If a component is broken, you can replace the component directly.
▪ Multi-functional options: 3CCT+3Power adjustable, Mesh Microwave Sensor, Emergency, 0-10V Dimmable, DALI Dimmable, NFC CLO etc....
▪ Multiple installation methods: Linkable or Non-linkable, Ceiling , Suspended, Rotatable ceiling.
▪ Different length and wattage could be supported for customization.
